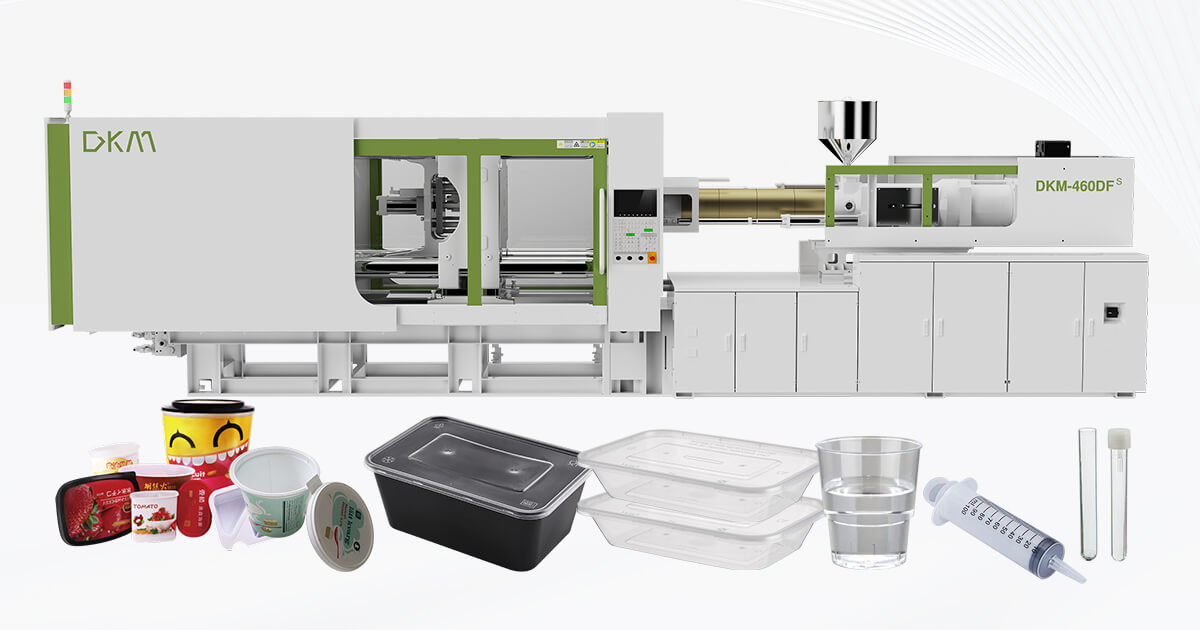

High-speed thin-wall injection molding is the construction of parts with thin walls through a high-speed injection molding machine. The molding process based on using high injection pressure as well as speed can be defined as the injection of the respective plastic material into the cavity. Some of the conventional injection molding machines might not be ideal for thin walls since there are so many demands in terms of speed and pressure. This is why using a specific machine for the production of thin-wall items is essential, as it allows for a definite number of settings for the wall thickness, as well as for the regulation of the plasticizing process and injection. Take the plastic packaging and meal utensil industries, for example; to satisfy consumer consumption and corporate requirements, the formation of thin-walled plastic products must be as efficient as possible and perform optimally.
The specific process of thin-wall injection molding requires high-speed injection molding machines with the following features to allow proper injection molding of thin-wall articles:
· The injection unit is ideal for the fast cycle time.
· The clamping unit is used in the mold during the injection molding process.
· The hydraulic system finds application in the mobility of several parts.
Polypropylene or another appropriate material used when molding thin-wall items should be relevant to producing a thin-wall product.
Consequently, the equipment used in thin wall injection molding is different from usual injection molding equipment since the thickness of the walls is less, and often, they require IML capabilities. Due to the thin wall thickness of the thermoplastic components, the injection molding design of the machine has to be optimized to deliver a higher injection pressure. Thin wall injection molding machines must also contain features like temperature control to enhance the production of pails with skinny wall thickness, and fast mold changing features.
This category of injection molding is used in producing large products, such as car accessories, that can be produced at high rates and pressures of injection.
The cycle time of these machines is usually shorter compared to the commonly used injection molding machines. This is because they have a short injection time, which enables them to fill the mold cavity quickly.
The control or monitor section of high-speed thin wall injection machines is effectively developed to meet the flow length to wall thickness ratio of production. The loads put on injection molding machines also change constantly, and the capacity to thin the walls while preserving the mechanical properties is proof that injection molding has grown as a field.
Effective cooling systems play an important role in the functionality of a high-speed injection molding machine. This is particularly important when using injection molding for thin walls and IML. The wall thickness and IML suggest that injection molding is a subcategory of molding that is used to mass-produce thin parts with the material going through the melting process.
To make these parts able to withstand high pressure and faster molding speeds, provisions for high-pressure operation constitute a highly requisite manner of construction. This entails styling the equipment with a slim rib wall without measurable trade-offs on the solidity and sturdiness of the molding equipment.
Thin-wall injection molding is a process that requires high-speed injection molds specifically for the production of thin and light parts, such as electronics or cell phone cases.
Among specifications for these machines, the performance of the screw is considered to be a critical factor that determines its ability to provide proper injection movement when producing the molds.
The intricate melt delivery and the injection system are required to provide a uniform wall thickness throughout the part. This is very important to make sure that the thickness of the walls, of the finished parts, is as wanted, as sometimes irregularities in thickness might occur.
Besides, high-speed, thin-wall injection molding machines are equipped with fast heating and cooling systems to decrease cycle time and enhance productivity. While these machines help in the manufacturing process to increase the rate of production of thin-wall parts, they also play a significant role in an organization's efforts towards preserving the environment since they emit minimal carbon and are efficient in the use of materials.
Thin wall molding often requires aggressive clamping force and absolute accuracy. Thus, in comparison to the traditional injection molding technique, where the most attention is paid to the thick sections, a thin wall means that the size of a part may be substantially smaller. Nonetheless, managing to keep the quality of the thin-walled parts is difficult sometimes because wall thickness affects the injection and the clamping cycle times by reducing it to half in some cases. This way, different problems that may occur in molding processes can be addressed in real time, thus utilizing molding applications in their best state. In the same regard, these features also enhance the delivery lead times and the overall fuel usage and carbon footprint by reducing material consumption.
In addition, real-time monitoring is also indispensable for observing the cleanliness status in the mold area during production since it can identify changes or contamination. The aspect of checking the process in a timely manner is able to help make corrections when needed, leading to better quality of the plastic material. The thin-wall molding not only eliminates the required space for the product but is also impactful on productivity because using less material to cool thin-wall molding. From improved clamping force, accuracy, and real-time control to quality control characteristics, thin-wall molding can deliver the highest form and finish in the final parts.
Getting back to the important issue of manufacturing, there are many advantages to using a high-speed thin-wall injection molding machine.
First of all, these machines are likely to enhance productivity and efficiency, causing a positive impact on general operations.
Second, there is the problem of part quality and rejection rate that is brought about by the thin–wall molding, and this enhances the quality of the parts, thus increasing customer satisfaction.
Further, by minimizing material and energy usage in the manufacture of these machines, costs are cut, and the environmental impact is minimized. However, the walls that these machines produce are thinner, which can lead to a slashing of cycle time by ½, thereby enhancing production. Therefore, the application of thin-wall molding utilizing a high-speed injection machine is an ideal way to improve the company's efficiency, quality, and sustainability.
Another factor that has been made realistic through the help of the current advancement in technology relates to the wall thickness of the injection molded parts. Thin Wall injection has also enabled manufacturers to realize other opportunities for making lightweight and comparably cheaper designs. The aim involves using an injection press that takes thin-walled material, hence minimal consumption of material, although it retains the strength needed. Besides, the decrease in the material thickness can sometimes result in bringing down cycle times, thus increasing the overall product rate and the general effectiveness of the product manufacturing process. On the whole, the concept applied to thin-wall injection molding has changed product design and manufacturing decisively.
Success stories and instances of application explain that the use of injection machines achieves high results and productivity in different spheres. Reports on the automobile industry on thin-wall molding find that organizations have benefited greatly through the reduction of costs and increase of speeds of production. Likewise, the electronics and consumer goods industry has had higher standards of products and quality due use of thin-wall injection machines. The packaging sector has also enjoyed the applicability of injection machines in the production of designs and operational forms. There are positive changes that have been recorded in the manufacture of medical devices, whereby manufacturers have increased the use of injection machines in the production of intricate parts. All these case studies offer proof of the usefulness of injection machines in different industrial fields.
A thin-walled high-speed injection machine is recommended for producing high-precision molding needed in certain applications. Such machines have enhanced characteristics such as rapid injection rates, high pressure, and other essential control mechanisms that make production more effective.
High-tech requires specialized equipment for particular applications, including high-speed thin-wall injection molding, as the industry's demand increases. This makes operating specialized machines cheaper and faster, resulting in increased productivity and better quality of the resources.
The future of high-speed thin-wall injection molding has great potential given that many technologies that are in the pipeline are being developed with the aim of enhancing the speed of the process, precision, and dependability. New molding machines for the next generation are being developed through innovations such as better automation, superior materials, cooling systems, and many more.
