Understanding the Significance of L/D Ratio in Injection Molding Machines


Whenever a manufacturer investing injection molding machines they show a commitment to get the best quality and end products. However, one thing to take into consideration is that before investing in such machines it is important for the manufacturers to consider the technical features as well. In these functionalities, one of the factors is the length-to-diameter ratio of that machine screw. This article aims to comprehensively explain what the L/D Ratio of the Injection Molding Machine is, its significance, and the potential challenges associated with different aspect ratios.

LD ratio

Decoding the L/D Ratio:

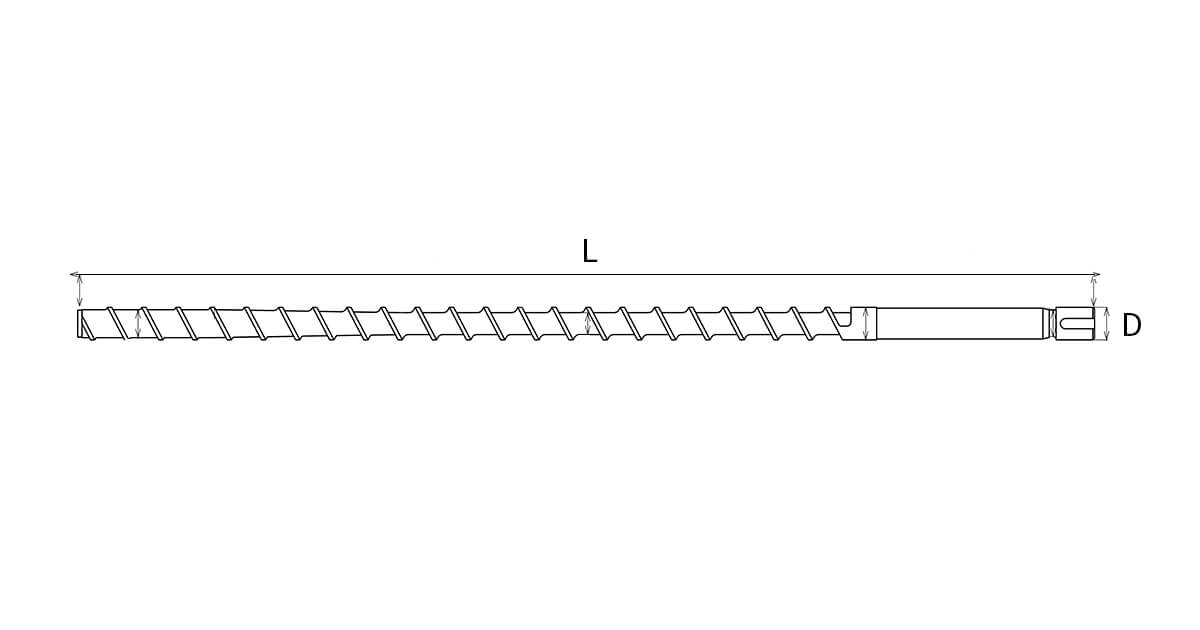

The length-to-diameter ratio refers to the length of the screw to its outer diameter ratio. This value is written in numerical terms and these values are important in the injection molding procedure. The calculation involves dividing the length of the screw by its nominal diameter. Although certain injection molding machine manufacturers offer options with length-to-diameter ratios ranging from 20-30:1 for specific injection units, the industry standard hovers around 20:1 for most injection molding screws.

Significance of Understanding the What is the L/D Ratio of the Injection Molding Machine:

The Length-to-Diameter (L/D) ratio is a crucial factor in injection molding, and it matters for a couple of important reasons. Let's break it down in easy language:

How L/D Ratio Influences Heat and Pressure:

Imagine you're baking cookies, and you have to decide how long to keep them in the oven and at what temperature. The L/D ratio is a bit like that for injection molding machines but for plastic instead of cookies.

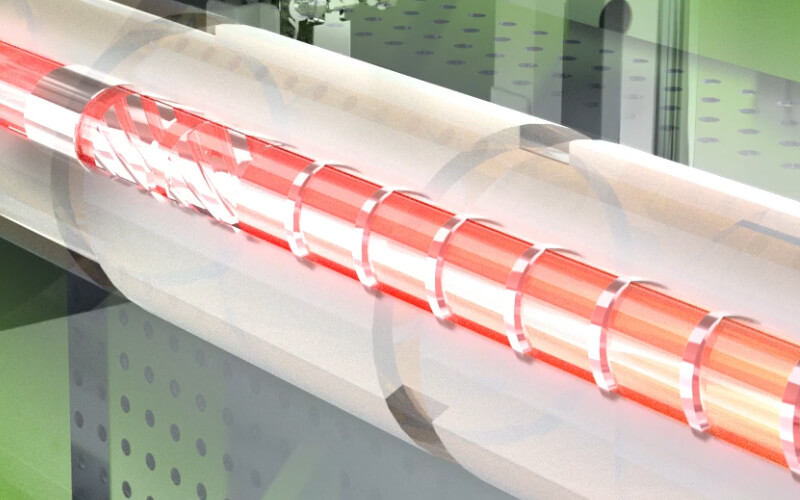

screw heat

In the injection molding machine, the length-to-diameter ratio tells us about the bond of screws that are present inside of the machine to the diameter that is on the outer side. Like in easy words we can say how long the screw are and how wide they are. Now, why does this matter? Well, it directly affects how much heat and pressure are applied to the plastic.

Why Different Ratios Matter:

Think about it this way: if you use a different screw with a longer or shorter length compared to its diameter, it can make the plastic react in different ways. We can take for example that it more or less looks like different size spoons that are used to mix the cake batter. And the results will turn out differently.

Now, if the L/D ratio isn't right, it could cause problems. It might lead to the plastic not turning out the way it's supposed to or even failing at certain ratios. So, the manufacturers have this responsibility to choose the right length to diameter length to ensure the results are perfect and desired.

double screw for heating

Selecting the Right Screw for the Job:

The manufactures of these machines are more or less like a chefs in the kitchen. They are desired to pick the right tools, right ratios i.e: the L/D ratios and the plastic to generate desired results. This is super important to make sure the things they are making turn out just right and don't have any problems.

In simple terms, the L/D ratio is like a recipe for making sure the plastic gets cooked just right in the injection molding machine. We can say that these are the key ingredients that manufacturers should consider to make everything work smoothly and get the results that are required.

Delving into the Logic of L/D Ratio:

When we understand the reason due to which the L/D ratio matters we actually talking about the inner workings of the machine.

Thinking about Channels and Screws:

Imagine the injection molding machine is actually a chefs kitchen. And now in this kitchen there is a special tool that is responsible for all the magic and its name is screw. This screw helps mix and shape the plastic. Now, the L/D ratio is like looking at how long this screw is compared to how wide it is – kind of like checking if a spoon is long or short.

Why the Length Matters:

So, now when we said L/D ratio we are actually talking about two things. The depth like how deep it is and the width like how wide the screw is. These things affect how the screw works.

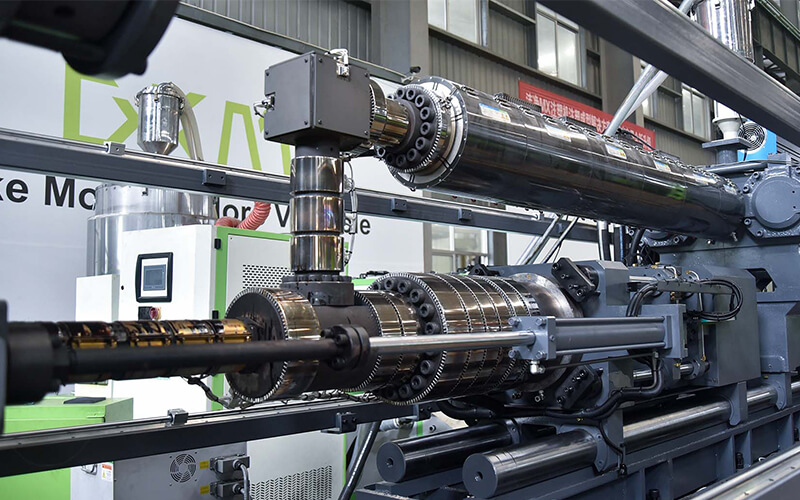

screw of injection molding machine

Why a Longer Ratio is Important:

Now, if we make the screw longer compared to its width, it's called increasing the L/D ratio. Doing this is like making the mixing spoon longer. And why do we want to do this? Because it helps the plastic stay in the screw for a bit longer – we call this "extended residence time."

Why Extended Time Matters:

Think about making hot chocolate. If you don’t mix properly or according to the time that is actually required to mix the stuff it will definitely won’t mix well. And if you mix for a bit longer it will get into the desired state. The same goes for the plastic in the machine. By having a longer screw, the plastic gets more time to mix and melt, creating the perfect conditions.

Screw Speed and Higher Output:

Now, lets talk about the plastic and their characteristics. Like if we want to melt the plastic even faster like for certain plastics that don’t take temperatre seriously and won’t get effected by the temperature that fast we can do something else. We can make the screw spin faster – we call this "screw speed." So, it's like turning the spoon faster in the hot chocolate. This doesn't happen because of the L/D ratio itself but because we can make the screw go faster for certain materials.

Navigating Challenges with Longer Aspect Ratios:

Let’s talk about the screws and the problems they can cause. These screws look small but they play a crucial role in the complete working of these machines and can cause serious problems. It is very important that one should know about these problems to avoid them. So, lets discuss. If the screw is longer it will get higher L/D ratio and help to mix well but if the L/D ratio exceeds it will cause serious issues.

· First is “limiting throughput”. Ttis refers to the idea that you are trying to do something really fast but the tool is too long that it is restricting the procedure.

· The really long screws also get too hot and this can cause problems as well like causing the plastic to change the color or lose its qualities due to higher temperature.

In Conclusion:

In the intricate world of injection molding, knowing  What is the L/D Ratio of the Injection Molding Machine is a critical factor significantly influencing the success of the molding process. Manufacturers must meticulously consider the aspect ratio of the screws they employ, considering the specific type of material being processed. By comprehending the importance of the L/D ratio and its nuanced implications, manufacturers can make informed decisions to optimize efficiency, elevate product quality, and ultimately ensure a successful injection molding process.

  • ×
