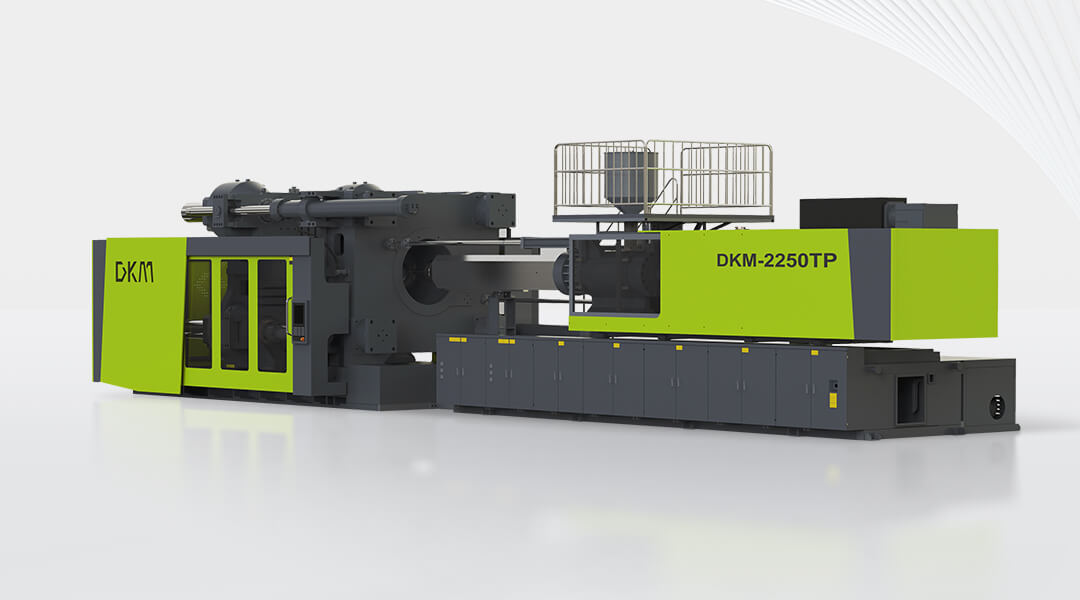

For an effective injection molding, good preparation as well as procedures are highly important. Primarily, one has to clamp the mold using hydraulic or pneumatic systems to apply the needed clamping force. In particular, the alignment of the mold halves and the correct settings of the mold plate heights dictate the possibility of the normal work of the injection molding machine. Subsequently, the molten plastic is injected into the cavity of the mold to create the particular plastic part and cool down to set. The ejector pins then remove the part from the mold, thus completing the creation of a part of that specific design. A proper guide to injection molding must be adhered to and particularly the setup of the injection molding machine should be done correctly to avoid imperfections which can be evident in the final product. There should be checks and balances in this process to ensure that the mold design and tooling used for the production of these parts are as required to ensure the high quality and standard of the parts being produced.
The process of injection mold setup may refer to a sequence of tasks of preparing and installing the different mold components that are mandatory to start the injection molding process. Before the actual process of making the plastic mold, the mold has to be correctly fixed and positioned onto the plastic injection molding machine. Here are the steps for setting up an injection mold:
This can be done by first, unpacking and securing the mold onto the appropriate brand of injection molding machine you have. Make sure that various elements have been properly connected as well as the injection mold has been well fixed.
After passivation of the mold height setting and the runner the injection molding machine is closed to start the actual injection molding.
There tend to be problems like the fact that the mold dimension will change due to misalignment and therefore it is necessary to consult the mold maker to align the injection mold correctly. Ensure that all parts of the mold are well-locked before screwing the clamp.
Molding techniques can be a bit tricky and therefore need a professional to conduct it in the right manner. Generally, it’s recognized that one of the key success factors in injecting the component is the proper choice of setting up the injection machine and pallet mold. This is very much so because before applying this process to a specific material, some conditions should be met depending on the type of metal or other material used. However, cooling and ejection methods are more noteworthy when it comes to the efficiency of the production runs. Some of the issues that should be solved regularly include a mold closure that will not close and a part that seems to be stuck in the mold and cannot freely come out is an area that needs a solution. This may include changing the settings of the hot runner, checking the ejector safety switches, or fitting the mold cavity with pull-out cores.
In case of very small details or complex dimensions on the mold, it may be required to make a new injection mold through CNC machining to match that particularly unique mold. At times, the incorporation of a hot runner system can enhance the quality of the end product particularly internal or external temperature gradient. It is very important to have a proper setup of mold procedures and also check up on the mold heater more often when having production runs. In case of problems emerge the general theoretical grasp of the process can allow us to note and solve any existing difficulties in time. For further details of various molding applications and important hints on solving problems do not hesitate to consult us on the questions of time and cost. lding.
Specialized variations of injection molding like over molding and insert molding have shifted the manufacturing of plastic parts among injection molders. Nonetheless, it is crucial to state that all these processes have their benefits, which means that the necessity of a more elaborate configuration is one of the distinctive characteristics of this type of molding. For example, in over molding, which is a process that involves molding a plastic material around a part, the injection mold must have the functionality of having retracting cores with the capability of ejecting the plastic part once it is molded.
Multi-shot and gas-assist molding both processes by themselves have their complications. In multi-shot molding where two or more materials are injected into one cavity during the next cycle, the mold will not close properly if the parameter of the machine clamping force is not set again from the initial setting to the final setting. In the same manner, gas assist molding requires an ejector safety to be incorporated in the mold such that, in cases where an ejector pin is to be made, the part that has to be ejected should not jam the ejector pins.
In-mold labeling and decorating is another advanced technique that was noted to need a lot of attention in the processing of products. This process calls for the insertion of a small paper or a sensor within the plastic part when the formation of the part is in progress. To ensure that the sensor is working in the right way, one has to check it to avoid any form of defects in the final product. In general, the application of these techniques requires considerable education about the approach that would result in the best work on plastic parts manufacturing.
In injection molds, this is to prevent weakening of the mold shapes which is important in lengthening the lifespan of the molds. Maintenance injection molding machine is very crucial to have the right quality of the final product besides being economical from the aspect that will not require the manufacturer to incur a lot of money to repair or replace damaged parts. It is advised that cores that are used in molding be retractable to allow for the removal of the finished product. They are found to be less time-consuming as compared to the other manufacturing techniques and thus proved to have a better finish. It is advised that these molds should have position sensors and a core pull program to work accurately. Moreover, the hygiene preservation of molds and the temperature control performance of using an electric heating system or water cooling affect the length of the molds’ service life. If you need assistance with mold maintenance or safety precautions, feel free to contact us today.
Concerning the injection mold setup and molding successful factors, we have the following tips. Temperature, pressure, and speed deserve a proper setting on an injection mold to produce good-quality parts. The cold/hot water connection, one in and one out is so compulsory to enable the cooling of the mold frequently with water or oil. Most of the parts will need some extent of draft to be easily ejected from the mold after the part has solidified. In the same regard, it is equally important to ensure that the clamping sets are tightened to ensure there is no problem with the molding process. If these recommendations are followed it will be possible to create a solid foundation for further injection molding.
In other words, paying much attention to the kind of molding that is being done could enable a person or a team of workers to notice the fact that there is some kind of flaw in the whole process and think about what has to be changed. The manageability of the vitality conditions such as temperature, pressure, and speed can also be tried out to find the best molding routine for distinct types of parts. Keep in mind that injection molding is a vast field that has a lot of room for enhancements.
