High Speed Injection Molding Machine (200Ton - 1300Ton)

DKM high-speed machine is designed for high productivity with flexibility to meet your requirement for high quality and efficiency. Faster, precise, low energy consumption and comprehensive safety, that makes the high speed injection moulding machine popular among our customers.

Machine Features Highlights of Machine Videos of Applications Machine Data

High Speed Injection Moulding Machine 300HH

High Speed Injection Moulding Machine details

Maximum Output for A Low Investment - high injection speed & high-response servo-hydraulic system for parallel operation of mould open & eject & plastic charging. So you can get a quicker payback by the faster cycle time with a fancy purchase price.

High Productive Efficiency - faster cycle time thanks to high injection speed and precision by accumulator and single carriage hydraulic.

Low Defective Rate - precise quality and response faster by professional single cylinder injection system with servo-valve.

Long Service Life - constant improving the machinery design and lubrication system for the high-speed work.

Flexible Range of Applications - multi-select high speed injection molding machines for standard and high-end applications.

Clamping Force - from 2,000 kN to 13,000 kN

Ready European standard connector for robot.

Suitable for packaging industry: thin wall containers (normal & IML), pails, buckets, caps, teletronics...

We can offer customized high speed injection machines according to your special requirements.

BACK

High Precision Injection Controller & Structure

In hydraulic unit, configure precision servo-valve, it runs with high precision, and response faster. In injection unit, DKM 200HH to 600HH configures linear slider avoids the barrel drop down and ensures the injection stable and precise; DKM 800HH to 1300HH applies guide pillar design for good load bearing.

High Efficiency Clamping Unit

Toggle with optimized design, perfect combination of speed and force, it is 10%-20% faster. Standard machine can realize material charging, mould opening and ejector at the same time, saving cycle time.

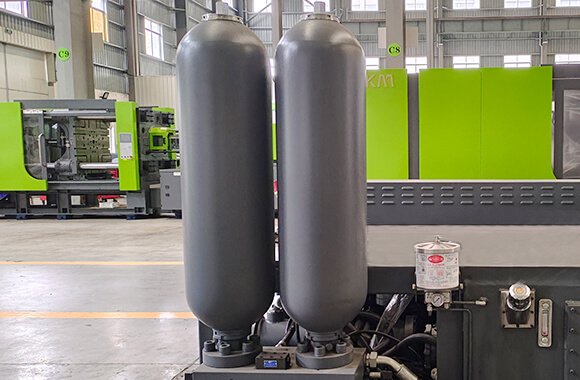

High Speed Response Accumulator

Machine adopts high precision single cylinder injection system, especially suitable for high speed injection, with low-inertia and high response speed. Machine adopts accumulator to realize high speed injection, the max injection speed can reach 300-600 mm/sec (according to different machine model).

High Energy Saving Injection Unit

With high-response servo system, machine runs according to actual need, no overflow or waste, saving power 30%-70%. Optional infrared Nano heating ring, less heat dissipation, more energy saving.

IML Paint Buckets

Machine | DKM-600HH

Part | 20L IML Bucket Part Material | PP Technology | IML (In mould labeling) Cycle Time | 20s
